Rockland Research Corporation specializesin the design and manufacture of equipment tailored to custom applications.

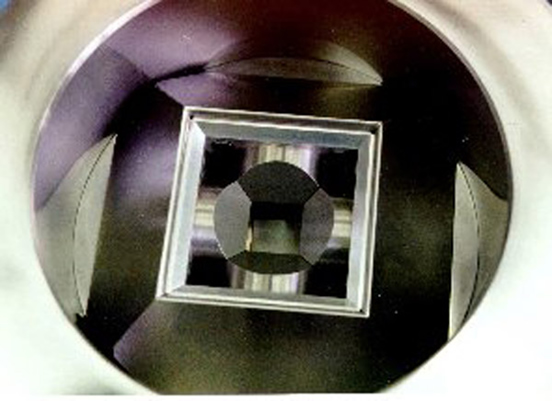

Rockland Research Cubic MultiAnvilRockland's recent cubic multi-anvil system was designed to operate atpressures as high as 60 kbar with large sample volumes (1 cm3) and to be interchangeablewith the Walker module. Six anvils are driven into the sample assembly by a setof anvil and wedge drivers using the top and bottom plates of the module. Inthe view to the right, the top set of drivers and top anvil have been removedto show the bottom and four side anvils. In the cubic-anvil module, six anvilspress on a cubic pressure medium. This device, as currently configured, canattain pressures up to 6 GPa on samples comparable in size to those used in a0.5" piston-cylinder cell.




Please contact us for more informationabout this special Rockland Research design.
