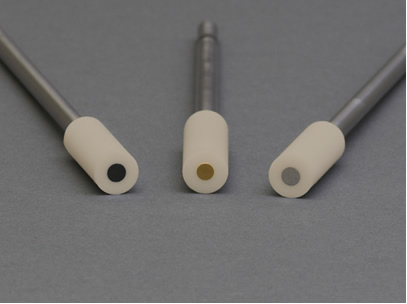

Disk electrode
E2 Fast electrode
Model: E2
Brand: PINE
Origin: USA
Product parameter
Maximum speed range: 0-7000 RPM
Material: GC, AU, PT, etc
Operating temperature: 10-25℃
Disk electrode diameter: 5mm
Electrode outer diameter: 12mm
Product introduction
PINE rotary disk electrodes are made of high-quality materials, uniform density, stable chemical properties, and supported by precision machining technology to ensure that each electrode has the same characteristics.
E2 fast rotating disk electrode adopts the integrated design, the rod and the electrode cannot be disassembled, to ensure that it still has the advantages of stability and non-eccentricity in the case of high-speed rotation, to ensure the accuracy of the experiment.

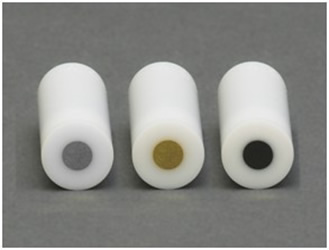

E3 disk electrode
Model: E3
Brand: PINE
Origin: USA
Product parameter
Material: GC, AU, PT, etc
Operating temperature: 10-25℃
Disk electrode diameter: 5mm
Electrode outer diameter: 12mm
Product introduction
PINE rotary disk electrodes are made of high-quality materials, uniform density, stable chemical properties, and supported by precision machining technology to ensure that each electrode has the same characteristics.

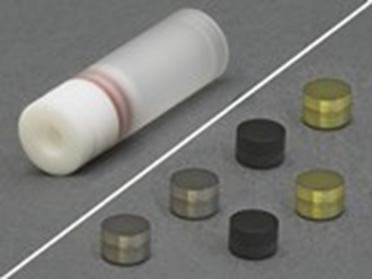

E4可换盘电极
Model: E4 Convertible disk
Brand: PINE
Origin: USA
Product parameter
Material: GC, AU, PT, etc
Operating temperature: 10-25℃
Disk electrode diameter: 5mm
Product introduction
PINE rotary disk electrodes are made of high-quality materials, uniform density, stable chemical properties, and supported by precision machining technology to ensure that each electrode has the same characteristics.
E4 Replaceable spiral disk electrode through the unique U-CUP, allowing users to insert the disk, which can effectively reduce the cost of use, and users can choose the disk electrode material, expand the scope of research.

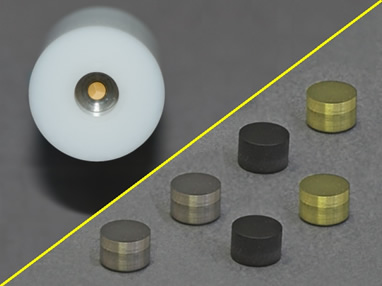

E5 Interchangeable disk electrode
Model: E5 Convertible disk
Brand: PINE
Origin: USA
Product parameter
Material: GC, AU, PT, etc
Operating temperature: 10-25℃
Disk electrode diameter: 5.0mm
Electrode outer diameter: 15mm
Product introduction
PINE rotary disk electrodes are made of high-quality materials, uniform density, stable chemical properties, and supported by precision machining technology to ensure that each electrode has the same characteristics.
E5 Replaceable spiral disk electrode through the unique U-CUP, the user can insert the disk, which can effectively reduce the cost of use, and the user can choose the disk electrode material, expand the scope of research.
External thread design, better contact, stable signal transmission.

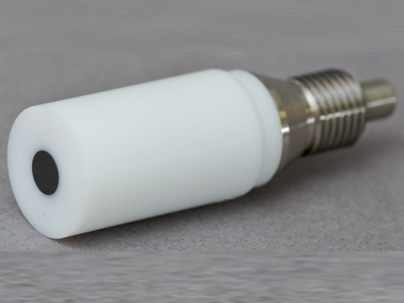

E5 disk electrode
Model: E5
Brand: PINE
Origin: USA
Product parameter
Material: GC, AU, PT, etc
Operating temperature: 10-25℃
Disk electrode diameter: 5.0mm
Electrode outer diameter: 15mm
Product introduction
PINE rotary disk electrodes are made of high-quality materials, uniform density, stable chemical properties, and supported by precision machining technology to ensure that each electrode has the same characteristics.
E5 rotating disk electrode, packaged with polytetrafluoroethylene, has good chemical resistance and can work in concentrated acid systems. External thread design, better contact, stable signal transmission.

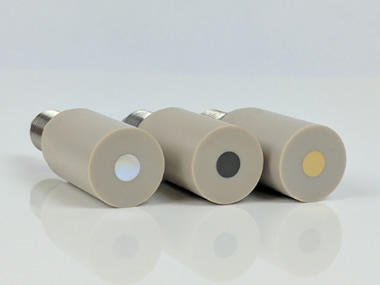

E5 disk electrode (high temperature)
Model: E5 High temperature
Brand: PINE
Origin: USA
Product parameter
Material: GC, AU, PT, etc
Operating temperature: 80℃
Disk electrode diameter: 5.0mm
Electrode outer diameter: 15mm
Product introduction
PINE rotary disk electrodes are made of high-quality materials, uniform density, stable chemical properties, and supported by precision machining technology to ensure that each electrode has the same characteristics.
E5 rotary disk electrode, packaged with PEEK material, can work in high temperature (below 80℃) environment. External thread design, better contact, stable signal transmission.
