ODM-100

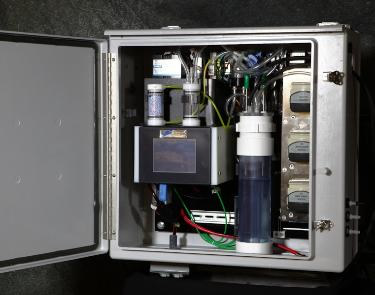

The ODM-100 OxygenDemand Monitor is a portable unit for measuring real-time oxygen demand at anypoint in a wastewater treatment process.

How it works

·          Wastewatercan be added to the Reactor Vessel from the influent stream, or mixed liquorcan be sampled directly from an aeration basin

·          Oxygenuptake rate data is sent to a 4-20mA output (suitable for SCADA systems), isstored in memory, and can be downloaded via USB memory stick for subsequentprocessing

·          The datafile includes oxygen uptake rate in milligrams/liter/hour and the time and dateof data recording

Power Requirements

115V/15A/60Hz

SCADA Output

4 – 20mA

Enclosure

NEMA 4

Reactor Vessel

1 Liter

Controller

PLC

User Input

6 inch Touchscreen

Oxygen Uptake Range

0 to 600mg/hr
