E3 Fixed-Disk RDE


MAXIMUM ROTATION RATE: 2500 RPM -- Neverexceedmaximum rotation rate when working with rotating electrodes.

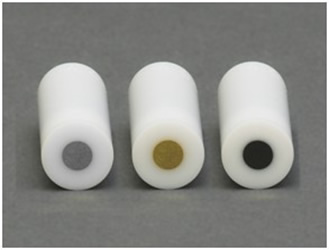

These E3 Series Fixed-Disk RDE tipsfeaturing a12.0 mm OD PTFE shroud are one of our most popular RDEproducts.  Simplyscrew the tip on to theshaft, and it is ready to be rotated. This shaftand tip RDE design allows you to use multiple RDE tips withthe sameshaft.  Designed for experimentslike fuel cell electrocatalyst screening,these RDE tips provide the platformyou need to accomplish your researchgoals. Our most popular disk insert RDEs can be found here, includingglassycarbon, platinum, and gold.

Disk OD = 5.0 mm

Fixed-Disk RDE tip; 12 mm OD PTFE shroud

Compatible with the MSR, ASR, and CPRrotators

See "Description" tab belowforadditional precautions and information.



Description

TEMPERATURE RANGE: 10°C – 25°C —Electrodedamage may occur at temperatures beyond recommended range.

This series ofRDEtips may be used with the MSR,ASR, and CPR rotators.

These E3 Series Fixed-Disk RDE tipsfeaturing a12.0 mm OD PTFE shroud are one of our most popular RDEproducts.  Simplyscrew the tip on to theshaft, and it is ready to be rotated. This shaftand tip RDE design allows you to use multiple RDE tips withthe sameshaft.  The disk electrode canbe made from a variety of metals, alloys,and steels，and the shroud is fabricatedfromchemically-resistant PTFE. Our most popular disk insert RDEs can be foundhere,including glassy carbon, platinum, and gold. Designed for experimentslike fuel cell electrocatalyst screening, theseRDE tips provide the platformyou need to accomplish your research goals.

Compatible shafts include AFE3M for usewith theMSR rotator, AFE3A for use with the ASR rotator, and AFE3F fornon-rotatingapplications.



Specification

Shroud Material   PTFE

Disk OD  5.0 mm

Shroud OD  12.0 mm
