Cell（without water jacket）

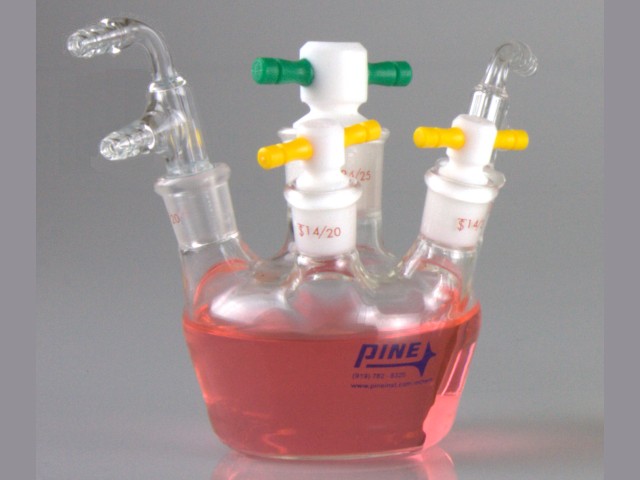

This standard150 mL cell features five round glass ports. The center port (24/25) is largeenough to easily accommodate the shaft of a rotating disk or ring-diskelectrode. The four side necks are smaller (14/20) and can be used to mountreference and counter electrodes and other accessories.

Two accessoriesare included to permit deaeration of the cell contents. A dual inlet accessorywhich mounts in one of the side ports can be used to sparge the cell solutionand/or blanket the solution with an inert gas. A single outlet accessory servesas the escape path for the sparging/purging gases.

A complete setof PTFE stoppers for sealing the cell is also included.
